Cotton waste and discarded fabrics such as old clothes, curtains, carpets, and fishing nets are common in our daily lives. These materials hold high recycling value and can be processed into new fiber products like non-woven fabrics, insulation materials, etc.

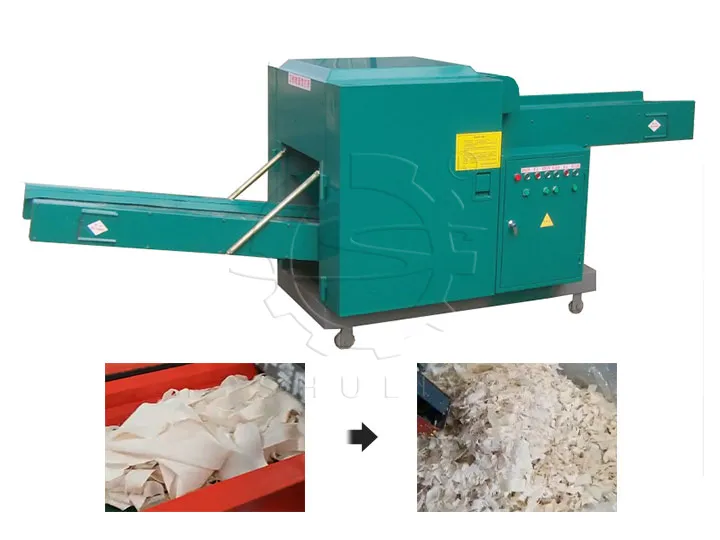

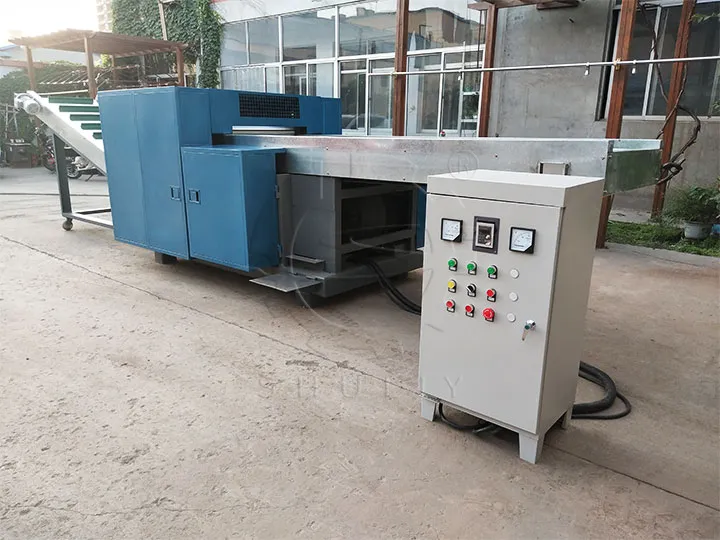

However, large and bulky textile waste is difficult to handle directly. Using the Shuliy textile cotton waste cutting machine, these materials can be shredded into short, uniform fibers, greatly improving fiber recycling efficiency and enabling a continuous, stable, and high-speed cutting process.
Application and Function of the Fiber Cotton Waste Cutting Machine
The Shuliy fiber cutting machine can efficiently cut the following materials:
Textile Industry: Waste clothes, cotton spinning waste yarn, waste clothing, non-woven fabrics, trademark tags, etc.
Fiber materials: Cotton, wool, chemical fibers, linen, and leather trimmings.
Industrial waste: Plastic film, paper, etc.
With this textile cutting machine, you can get:
- Fine Cutting: Uniformly chops waste fiber material (adjustable length: 3 mm- 500 mm).
- Regeneration Pretreatment: Provides qualified raw materials for loosening and reprocessing.
- Replace Manual Labor: Solves the problem of traditional chopping and cutting, which requires a lot of labor.
- Good Cutting Effect: Compared to a fiber laser cutting machine, there is no thermal impact or scorch marks on the material, and it is not sticky.
- Process Optimization: Realize full automation of continuous feeding, shearing, and discharging.
Top 5 Advantages of the Textile Cutter Machine
-
High-Speed Cutting
Advanced spiral rotary blades enable continuous cutting at 300–2000 kg/h. -
Precise Control
Adjustable cutting length with ±1mm accuracy (model dependent). -
Durable Blades
Alloy steel blades with dual-edge design extend service life 3×. -
Smart Protection
Built-in overload protection and emergency stop for safer operation. -
Easy Maintenance
Modular blade tray and visual guide allow quick servicing in <30 minutes.
Hot-selling Fabric Cutting Machines for Sale
Here are the specifications for our five best-selling cotton waste cutting machines. The knives of the fiber cutting machine are made of hard, durable alloy tool steel.
| Mfano | 500B | 800C | 1200B | 1600B | 2400B |
| Uwezo | 300–500 kg/h | 500–800 kg/h | 800–1200 kg/h | 1000–3000 kg/h | 2000–5000 kg/h |
| Motor Power | 5.5 + 1.5 kW | 7.5 + 1.5 kW | 15 + 2.2 kW | 18.5 + 3.0 kW | 22 + 3.0 kW |
| Cutting Size | 5–150 mm | 5–150 mm | 5–150 mm | 5–300 mm | 10–300 mm |
| Cutting Thickness | 20 mm | 30–50 mm | 30–50 mm | 30–150 mm | 30–200 mm |
| Dimensions | 3200*1000*1200 mm | 3200*1000*1200 mm | 7000*1500*1500 mm | 7000*1800*1950 mm | 5800*2200*1950 mm |
| Infeed/ Output Belt | 2800*350 mm | 2800*350 mm | 3000*520 mm | 3000*720 mm | 3000*1100 mm |
| Electrical Configuration | Overload thermal protection, electric control box | Overload thermal protection, electric control box | Independent electrical control box | Independent electrical control box | Independent triple-control electrical box |
Working Principle of the Waste Cotton Cloth Cutting Machine
- Input: Place waste fiber, cotton cloth, etc., on the transfer belt and into the cotton waste cutting machine.

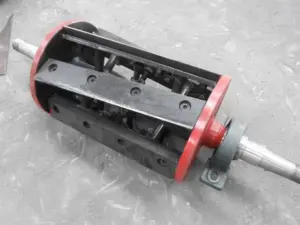

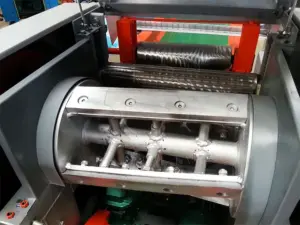

- Cutting: The fiber cutting machine uses an advanced, slanted, spiral rotary blade design that works with fixed blades to create a moving shear point. This allows for continuous, high-speed cutting of materials.
- Discharge: The cut fiber pieces slide into the hopper and are sent out through the output belt.According to production requirements, a strong magnetic separation device can be added to absorb mixed nails, buttons, etc., extending the blades’ lives.
Get Fabric Cutter Price!
Shuliy offers a wide range of cotton waste cutting machines and customized solutions for fiber recycling. If you are interested, please contact us for pricing, pictures, live videos, industry applications, and more!
